How Salt Spray Testing as per ASTM B117 Secures Corrosion Protection of the UAE

The UAE has one of the most hostile corrosion conditions in the world due to high humidity, coastal exposure, and airborne chlorides. Metallic parts are experiencing increased degradation since construction fasteners and automobile parts are used in electrical enclosures and packaging hardware.

Failures in connection with corrosion cause:

• Structural weakening of components
• Electrical malfunction due to rust formation
• Coating delamination and aesthetic damage
• Expensive warranty returns and export returns

Without controlled laboratory simulation, corrosion resistance cannot be reliably predicted. Here is where salt spray testing is very important during quality assurance and product validation.

Salt Spray Testing as per ASTM B117

The best-known approach to the analysis of corrosion resistance is known as ASTM International B117 definition. This criterion describes how a salt mist device should be utilized to mimic corrosive marine conditions that are corrosive.

By exposing coated or uncoated metal specimens to a fine mist of sodium chloride solution under controlled temperature and humidity conditions, manufacturers can assess:

• Coating durability
• Surface treatment effectiveness
• Base metal resistance
• Comparative performance between materials

In the case of UAE industries, in which the oxidation is facilitated by air with a high concentration of chloride, the adherence to the ASTM B117 means that the products may be subjected to the actual conditions.

The Importance of Salt Spray Testing in Reliability in Industry

Corrosion testing is not only a compulsory issue, but also a preventive measure

Using a salt spray corrosion test chamber, QA teams can:

• Validate protective coatings before market release
• Compare plating thickness effectiveness
• Detect galvanic corrosion susceptibility
• Evaluate powder coating and electroplating performance

Industries such as automotive, oil & gas, construction hardware, marine equipment, and electronics manufacturing rely on salt spray validation to reduce lifecycle failures.

Working Principle of a Salt Spray Test Chamber

A salt spray testing machine is used in the creation of a controlled saline mist environment within a closed chamber.

Step-by-Step Operation:

1. A 5% solution of sodium chloride (NaCl) 5% is made in deionized water.
2. This plasma is used to ionize the air, and an atomizer is used to add a saline solution that creates a plasma mist. The saline solution is injected through a nozzle by a compressed air system.
3. Chamber atmosphere: The chamber is saturated at a fixed temperature.
4. Placement of the Specimen: Test samples are positioned at a particular angle to provide some level of uniformity in exposure.
5. Duration of Exposure: 24 to 1000+ hours, as per industry demands.
6. Testing: Red rust, red blistering, pitting, or failure of the coating is checked on the specimens.

Glass cabin Salt fog test chamber. This test cabin is a replica of years of natural corrosion in a matter of days or weeks, allowing analysis of durability to speed up.

Failure Modes that were noticed in the Salt Spray Testing

The knowledge of corrosion patterns will assist in the selection of material and optimization of coating:

• Red Rust Formation: Refers to the exposure of the base metal as a result of breakdown in the coating.
• White Rust: This is typically common to zinc finishes; this indicates consumption of the sacrificial layer.
• Blistering: Poor adhesion between coating and substrate.
• The protoblast attack, which is localized based on the porosity of the coating.
• Delamination: Before coating, there was no proper preparation of the surfaces.

Based on these results with a calibrated Salt spray tester, production teams are able to optimize the coating process and increase resistance to corrosion.

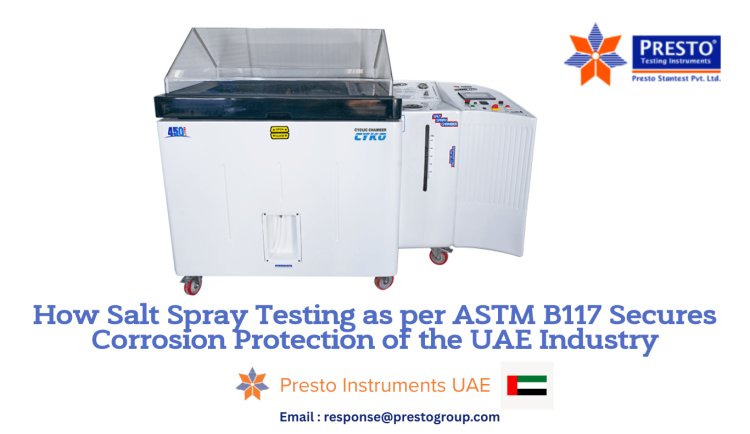

The main characteristics of Presto Salt Spray Test Equipment

Presto Instruments manufactures robust Salt spray test equipment engineered for industrial accuracy and durability.

Core Features:

• Corrosion-resistant FRP construction
• Precision temperature control system
• Uniform fog distribution design
• Digital timer and programmable controls
• pH monitoring for solution consistency
• Air pressure regulation and saturation tower
• Easy specimen mounting system

The salt rate of deposition is the same in our salt spray test cabinet, and this is essential in meeting the ASTM requirements.

Use in the UAE Industry

Salt spray validation is essential in:

• Automotive components (brackets, fasteners, body panels)
• Construction fixtures and fittings
• Electrical cabinets and circuits
• Marine equipment
• Oil & gas structural parts
• Powder-coated and electroplated products
• Packaging metal closures and caps

Export-oriented manufacturers in India supplying the UAE markets particularly benefit from pre-dispatch corrosion validation.

Compliance with International Standards

Presto’s salt spray test machine systems are designed in accordance with:

• ASTM International B117 – Salt spray (fog) testing.
• ISO 9227 - International Organization of Standardization Corrosion tests in artificial atmospheres.
• IEC 60068-2-11 Environmental testing, International Electrotechnical Commission.

Following these standards makes sure the tests are accepted worldwide and meet regulatory requirements.

Why Choose Presto Instruments?

As one of the trusted salt spray test chamber manufacturers, Presto Instruments delivers:

• Precision-engineered industrial testing machines
• Uniform fog distribution technology
• Calibration-ready systems
• Custom chamber sizes and automation options
• On-site installation and training
• Strong after-sales and AMC support

Our solutions are designed for QA managers and production heads who require reliable, repeatable corrosion data—not estimations.

In the UAE’s corrosive environment, product durability cannot be assumed—it must be validated. ASSTM B117 Salt Spray Testing gives fast-tracked, trustworthy information regarding coating and material performance.

A quality Salt spray chamber made by Presto Instruments would guarantee compliance, validation of durability, and long product reliability.

Contact Presto Instruments for a live demo and consultation.

FAQs

1. What standard governs salt spray testing?

ASTM B117 and ISO 9227.

2. What industries require a salt spray fog cabinet?

Many industries like the automobile, marine, electronics, construction, oil and gas, and packing fittings.

3. How frequently is the frequency of calibration dependent on the salt spray chamber?

It should be calibrated on a regular basis, typically once a year, so that the temperature, pH, and mog rate will be properly controlled.
